Thinner, smarter floor systems using dovetail composite deck
Offering some of the thinnest fire-rated composite slabs available, Reveal Floor System reduces story height and maximizes ceiling space—making it a strong alternative to poured-in-place or precast concrete floors. Faster to install, more cost-effective, and designed with a sleek exposed profile that doubles as a finished plank ceiling, Reveal Floor System combines performance with efficiency. Relocatable hangers further enhance flexibility, making it easy to suspend MEP or ceiling supports without compromise.
Designed for Multi-Residential and More
Engineered for efficiency, fire safety, and design flexibility, the Reveal Floor System delivers significant advantages across a range of building types. By taking advantage of its composite behavior, Reveal Floor System offers both structural performance and cost savings that make it the preferred choice for multi-residential and commercial projects alike.
The preferred solution for:
- Apartment Buildings
- Condominiums
- Student Housing
- Hotels and Resorts
- Senior Living
- And many more structure types
Reveal the Smarter Way to Build Floors
Performance
- Long Slab Spans – Achieve extended spans with shoring for efficient, flexible design.
- Proven Fire Resistance – High unprotected ratings, UL/ULC approved, for safety and compliance.
Efficiency

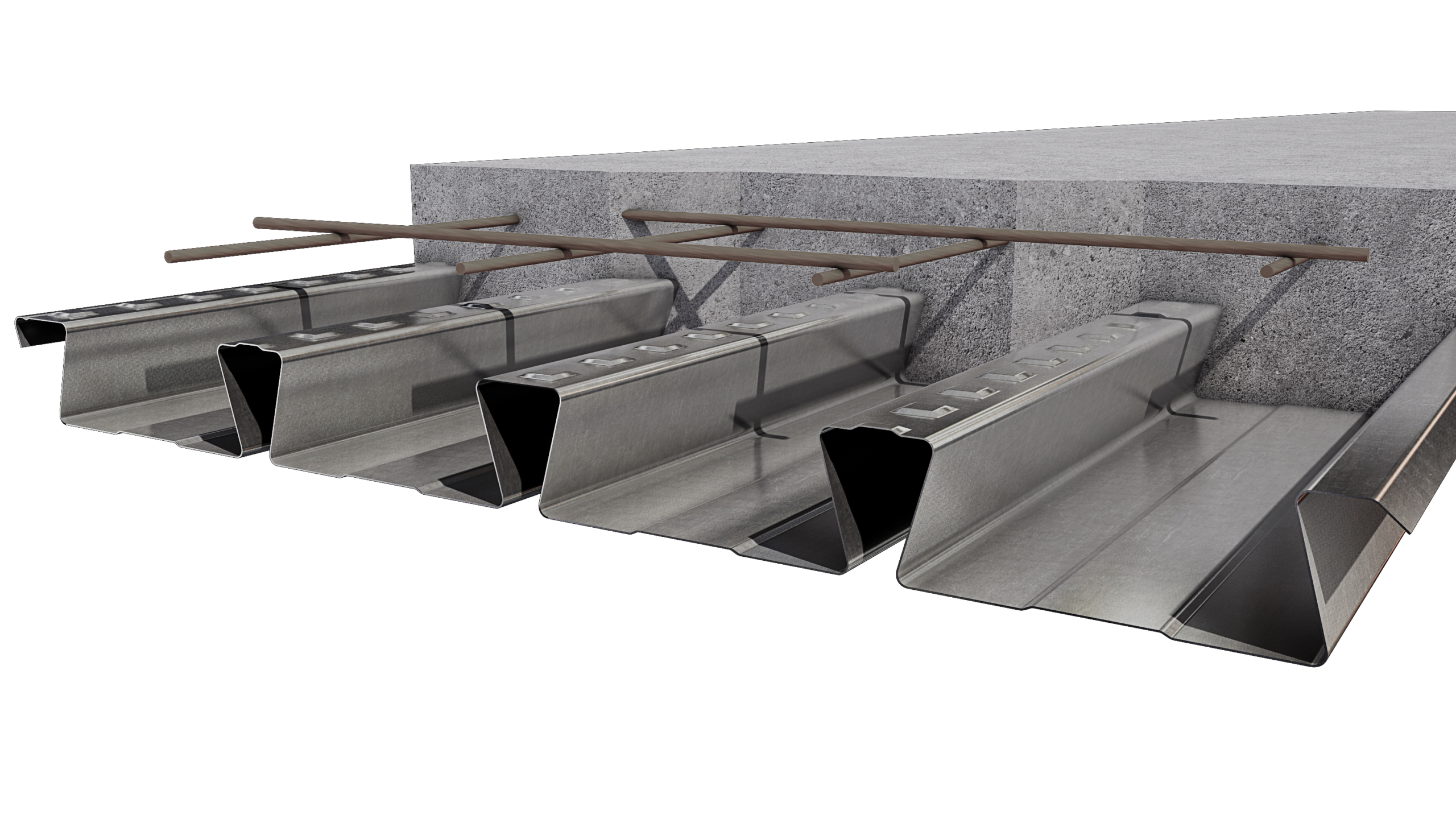

- Composite Behavior – Wide, low flutes maximize concrete volume while keeping slabs thin for load-carrying and fire-rating benefits.
- Versatile Options – Available in 2” and 3 ½” depths with gauges from 22 through 16, tailored to project spans and shoring needs.
Flexibility
- Non-Penetrating Hanging System – Dependable load capacity without compromising the deck.

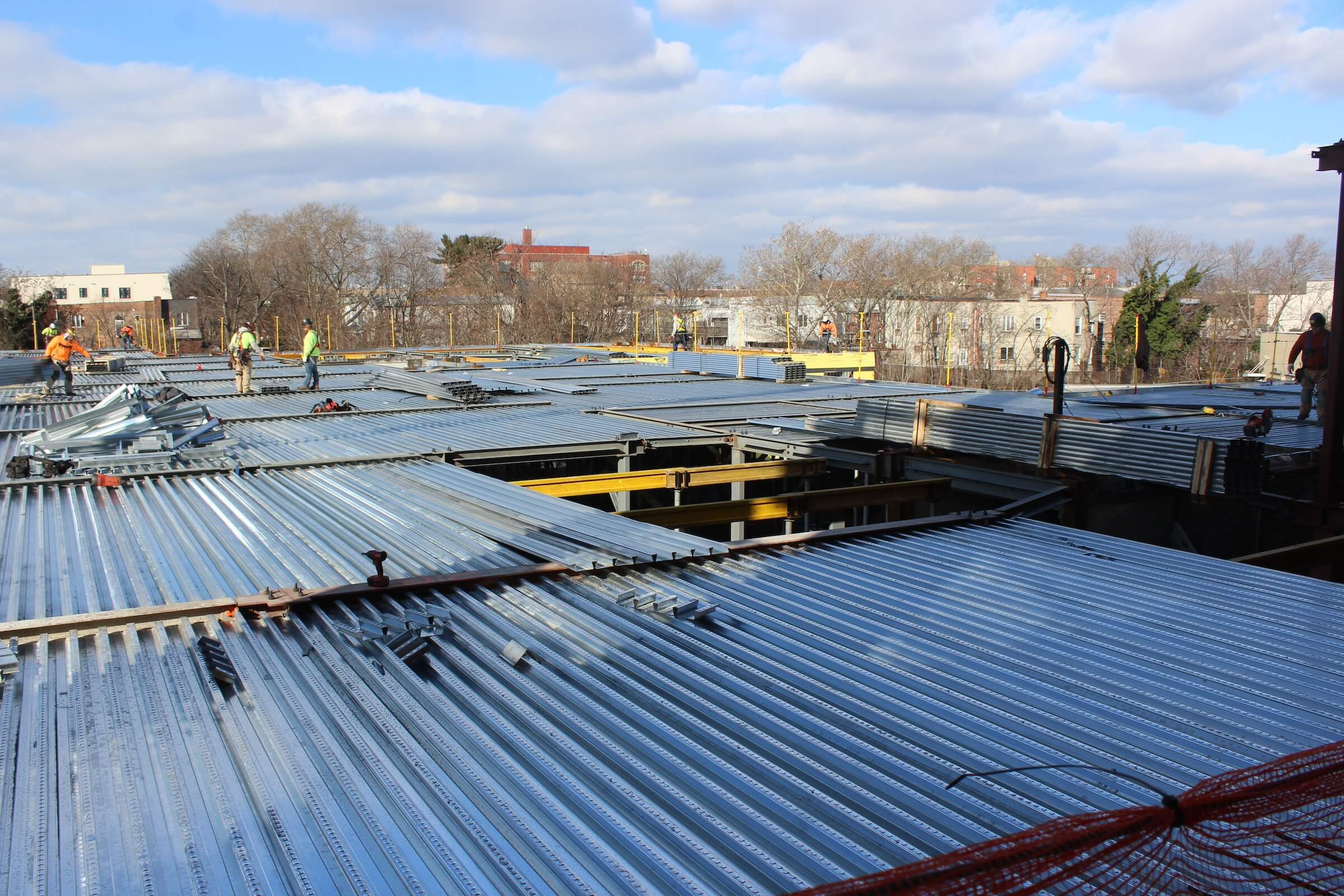

Easy Installation – Functions as a stay-in-place form, saving time and labor.
Aesthetics & Sound
- Sleek Plank Look – Exposed dovetail profile delivers a clean, linear ceiling finish.
- Field-Ready Finishes – Optionally supplied with white primer for easier painting in the field.
- Acoustic Comfort – Meets industry STC standards for sound control; acoustical option achieves NRC 0.80 to reduce reverberation when exposed.
